Swimming Pool Filter

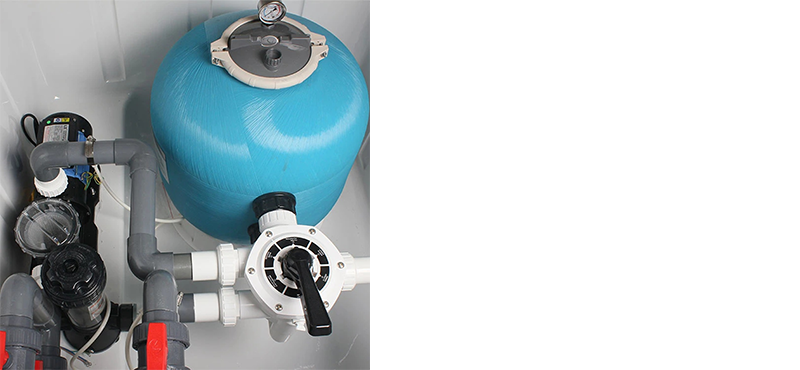

The filters in this system are high rate sand filters. Sand filters consist of a large tank, made of fiberglass, concrete or metal, containing a thick bed of special-grade sand.

During filtering operation, dirty water from the pool comes in through the filter's inlet pipe, which leads to the water distribution head inside the tank. While gravity pulls the water down through the sand, the tiny sand particles catch any dirt and debris. At the bottom of the tank, the filtered water flows through the pick-up unit and out the outlet pipe.

Over time, the collected dirt and debris in the sand slows down the water flow. Pressure gauges at the filter inlet and outlet give the pool custodian an idea of the blockage level inside. If gauges show much greater pressure on the inlet pipe than the outlet pipe, the custodian knows there's a lot of collected debris in the sand. This means it's time to backwash the filter manually or automatically.

In place of a sand filter, some pool systems use a diatomaceous earth filter or a cartridge filter. In a diatomaceous earth filter, water from the pool passes through filter grids coated with diatomaceous earth, a fine powder made from the chemically inert, fossilized remains of sea organisms called diatoms. In a cartridge filter, dirty water passes through a filter made out of polyester cloth or corrugated paper. Instead of backwashing, you simply remove the filter and hose it off. After a few years (or as many as eight years), it's time to discard the old filter and put in a new one.
